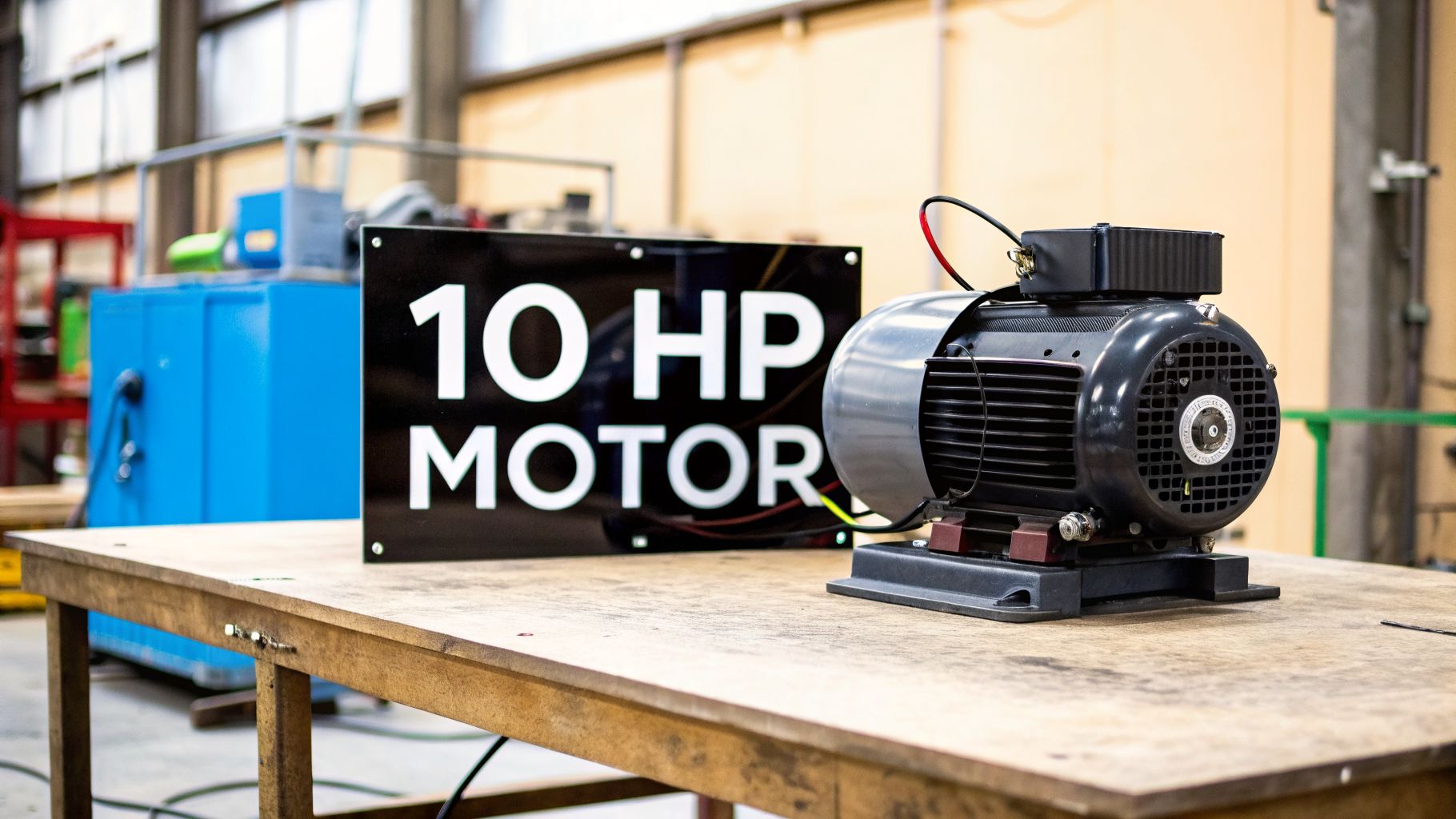

Your Guide to the 10 HP Electric Motor Single Phase

A 10 hp electric motor single phase is a serious piece of equipment. It's the go-to workhorse for big jobs on farms, in large workshops, or at commercial sites where you need industrial-grade power but don't have a three-phase electrical supply.

Decoding the 10 HP Single Phase Powerhouse

When you need real muscle but are limited to the single-phase power found in most homes and small businesses, the 10 hp electric motor single phase is your best bet. It sits at the upper limit of what you can run on a standard single-phase circuit.

Unlike smaller motors, a 10 horsepower (HP) unit is engineered to handle massive starting loads. It generates a huge amount of initial torque to get heavy machinery moving from a standstill, making it critical for specific, high-demand applications.

What Makes This Motor a Workhorse

At its core, this motor solves one big problem: it delivers industrial-level performance without an industrial power grid. Its design is focused on creating enough twisting force (torque) to kickstart equipment that would stall a lesser motor.

So, where do you find these motors? They are the unsung heroes behind equipment like:

• Large Air Compressors: Powering big compressors in auto shops and on farms.
• Hydraulic Systems: Driving pumps for car lifts, log splitters, and other hydraulic machinery.
• Agricultural Equipment: Turning grain augers, running large barn fans, and powering irrigation pumps.
• Commercial Machinery: Operating industrial grinders, mixers, and other demanding equipment in small businesses.

This table gives you a snapshot of the typical specs for a standard 10 HP single-phase motor.

Typical 10 HP Single Phase Motor Specifications

These numbers are a solid baseline, but always check the motor's nameplate for exact details.

Understanding Its Core Characteristics

A 10 HP single-phase motor is more than just its horsepower rating. All its key characteristics are stamped on a small metal plate on its housing. To pick the right motor and install it safely, you need to know how to read a motor nameplate.

This plate tells you everything, from voltage and running amps to frame size and speed (RPM). Getting familiar with these details is the first step before you can think about wiring, installation, or safe operation. We’ll break down what these specs mean in the sections ahead.

Understanding the Electrical Requirements

A 10 hp single-phase electric motor is a workhorse, but you must respect its power demands. Getting the wiring wrong isn't a small mistake—it’s a fast track to tripped breakers, fried equipment, or even a fire.

Before you flip the switch, you need to understand what this motor demands from your electrical system. Let’s break it down.

Voltage: The Starting Point

First, voltage. These motors are almost exclusively built for a 230V or 240V circuit. This is the same voltage your stove or dryer uses, but the motor's demand for current is in a different league.

Don't even think about a standard 120V outlet. It won't work. You'll just trip the breaker. This motor needs its own dedicated, high-voltage circuit straight from your panel. No exceptions.

Full Load Amps: The Motor's Cruising Speed

Once the motor is running under its intended workload, it draws a steady current. This is called Full Load Amps (FLA). For a typical 10 hp motor, expect this to be between 38 and 45 amps.

To put that in perspective, a 40-amp draw is more than two standard household circuits combined. This is why a heavy-duty, dedicated circuit is non-negotiable.

Locked Rotor Amps: The Moment of Truth

Here’s the number that surprises everyone: Locked Rotor Amps (LRA), or starting current. This is the massive, instant gulp of electricity the motor takes for a split second to start turning from a dead stop.

This surge is huge, often four to six times the FLA. For a motor pulling 40 amps while running, the starting jolt can spike to 160-240 amps or more. This creates incredible starting torque, but it will also mercilessly trip the wrong type of breaker.

Capacitor Types: The "Kick" to Get Started

Single-phase motors need help to get going, and that help comes from capacitors. Think of a capacitor as a small battery that delivers a powerful electrical "kick" to start the rotation. For a beefy 10 hp motor, you'll see one of two setups:

• Capacitor-Start: Uses a start capacitor for a strong initial push. As the motor reaches about 75% of its full speed, a switch takes the capacitor out of the circuit.
• Capacitor-Start/Capacitor-Run: The go-to design for most large motors. It uses a big start capacitor for that initial grunt and keeps a smaller run capacitor engaged the whole time. The run capacitor makes the motor more efficient and helps it operate more smoothly.

Understanding these electrical needs—voltage, running amps, starting surge, and capacitors—is the foundation for a safe and successful installation.

How to Size Your Wiring and Circuit Protection

Getting a 10 hp single-phase electric motor running isn't plug-and-play. If you get the wiring or circuit breaker wrong, you risk poor performance, a fried motor, or a fire. Think of it like building a dedicated highway for electricity—the road needs to be wide enough (wire gauge) and have the right safety measures (your breaker).

This visual guide lays out the three electrical hurdles you have to clear: voltage, steady amperage, and that huge starting surge.

The flow is simple: start with the high voltage needs, size your wire for the continuous amperage, and pick a breaker that won't trip when the motor kicks on.

Choosing the Right Wire Gauge

Your first job is picking the right wire size (gauge). This is critical because the wire's thickness determines how much current it can handle before overheating. For a motor pulling 40-45 amps, you're already looking at beefy wire, but amps aren't the only factor.

Distance matters. The further the motor is from the electrical panel, the thicker the wire needs to be to fight voltage drop. Think of it like water pressure loss in a long garden hose. If the voltage sags too much, the motor is starved for power, runs hot, and will burn out.

Crucial Tip: Consult the National Electrical Code (NEC) tables for the right wire gauge based on your amperage and run length. For a 10 hp motor on a 60-amp circuit, a #6 AWG copper wire might work for a short run. But stretch that to 100 feet, and you'll likely need to jump to a thicker #4 AWG wire to keep the voltage stable.

The Critical Role of Circuit Protection

Next is the circuit breaker. You can't just match the breaker's rating to the motor's running amps. Remember the massive starting current—the Locked Rotor Amps (LRA)? A normal circuit breaker sees that 200+ amp surge as a major fault and will trip instantly.

This is where a special breaker saves the day. You need a motor-rated (HACR) breaker.

An HACR breaker has a time delay. It's smart enough to ignore the brief, powerful jolt when the motor starts, but it will still trip immediately if there's a real short circuit or sustained overload.

A Practical Safety Checklist

Run through this checklist to ensure you've hit all the key safety points for your 10 hp electric motor single phase installation.

• Confirm Your Power Source: First, make sure you have a dedicated 240V circuit ready to go. If not, stop.
• Calculate Total Load: The NEC requires your circuit to handle at least 125% of the motor's Full Load Amps (FLA). For a 40-amp motor, that means a circuit designed for at least 50 amps, usually requiring a 60-amp breaker.
• Select the Correct Wire Gauge: Use an NEC voltage drop calculator or chart to find a wire gauge that handles both the amps and the distance from your panel.
• Install a Motor-Rated Breaker: Double-check that your breaker is HACR-rated to handle the startup surge without nuisance trips.
• Use a Magnetic Starter: For a motor this big, a magnetic starter is essential. It acts as a heavy-duty relay, providing overload protection and allowing safer low-voltage controls for starting and stopping.

Sizing your wiring and protection correctly is the most important thing you can do to ensure your motor runs safely and reliably. If you have any doubts, call a licensed electrician.

Common Applications and Key Limitations

A 10 hp single-phase electric motor is a special-case workhorse. It's a powerful problem-solver for situations where you need serious grunt without access to industrial-grade power. Knowing where this powerhouse shines—and where it struggles—is key to getting it right.

It’s the ultimate solution for delivering massive starting torque when you're stuck with a standard single-phase connection. Let’s dive into the real-world jobs where this motor is a hero and the critical trade-offs you have to accept.

Where This Motor Is the Perfect Fit

The signature trait of a 10 HP single-phase motor is its incredible starting torque. It’s built to give a massive shove to machinery that's hard to get moving.

The market for high-power motors is huge and growing, expected to climb from $13.78 billion in 2025 to $24.31 billion by 2035, showing just how vital they are. You can find more market data from various industry reports online.

Here are the most common places you’ll find one doing its job:

• Large Air Compressors: In auto body shops, woodworking garages, or farm repair sheds, you'll find these powering big piston air compressors. They need a tremendous kick to start pressurizing the tank, and this motor delivers.
• Hydraulic Pumps: From vehicle lifts to heavy-duty log splitters, hydraulic systems need a motor that can spin a pump under load. A 10 HP motor has the raw power to drive these systems effectively.
• Agricultural Equipment: This motor is a farmer's friend. It runs large grain augers, massive barn ventilation fans, and irrigation pumps that must start reliably every time.
• Commercial Ventilation and Blowers: Big fans and blowers are needed to circulate air in large commercial buildings. If you're curious about blower ratings, our guide on what 100 CFM means for a blower offers a great breakdown.

Understanding the Key Limitations

For all its strength, a 10 hp electric motor single phase has serious compromises. It's a workaround, engineered for a limited power supply, and that comes with baggage. Knowing its weaknesses is as important as appreciating its strengths.

The biggest catch is its lower efficiency compared to a three-phase motor. It pulls more electricity to produce the same horsepower, which means higher energy bills.

Another major headache is the strain it puts on your electrical system. The high running amps and monster starting current require a robust, dedicated circuit, a heavy-duty breaker, and a magnetic starter. Installation can get complex and expensive fast.

Finally, you're at the ceiling for single-phase power. If your needs grow beyond 10 HP, you'll have to find a different solution, as larger single-phase motors are rare and impractical.

Single Phase vs. Three Phase Motor Decision Guide

This leads to the big question: stick with single-phase, or look at three-phase power? If you have a choice, this table breaks down the key decision factors.

Use this to decide between a 10 HP single-phase and three-phase motor based on power, cost, and your application.

Ultimately, the choice is a practical trade-off: the convenience of your existing power supply versus the long-term savings of a true industrial motor.

Installation and Maintenance Safety Tips

A 10 hp electric motor single phase is a serious piece of equipment and must be treated with respect. Proper installation and maintenance aren't just about making the motor last—they're about keeping you and your property safe.

From bolting it down to routine checks, every step plays a part in safe, reliable operation. Let's cover the best practices for setup and care.

Secure Installation Foundations

A good installation starts from the ground up. This motor produces serious vibration and torque, and if the base isn't rock-solid, you're asking for trouble.

Bolt it to a perfectly level and rigid foundation, like a concrete slab or heavy steel frame. It has to be strong enough to absorb vibrations without shifting. Tighten the mounting bolts to the manufacturer's torque specs to keep the motor from "walking" while running.

Shaft alignment is just as important. If the motor's shaft isn't perfectly lined up with the equipment it's driving (like a pump), you're putting a ton of stress on the bearings in both machines. That's a fast track to premature wear and a costly breakdown.

Creating a Safe Operating Environment

A 10 hp motor generates a lot of heat, and getting rid of that heat is key to its survival. Overheating is one of the quickest ways to kill an electric motor.

You need to guarantee plenty of ventilation. Follow these simple rules:

• Keep Airflow Clear: Never block the cooling fins or vents on the motor's housing. Keep the area clear of rags, sawdust, or anything that could obstruct airflow.
• Know Your Enclosure: A Totally Enclosed Fan Cooled (TEFC) motor keeps dust and moisture out, but that external fan still needs open air to pull from.
• Stay Out of Small Spaces: Installing your motor in a tiny, unventilated closet is a recipe for a meltdown. The air will get too hot, and the motor will have no way to cool itself.

The Maintenance Safety Checklist

Regular maintenance is your best defense against failure. But before you touch the motor, you must follow the most important safety rule.

The golden rule is Lock-Out/Tag-Out (LOTO). Before any maintenance, shut off power at the breaker panel, lock the breaker "off," and tag it to explain the circuit is being serviced. This is the only way to be certain no one can accidentally turn the power on while you're working.

With the system locked out, run through this simple maintenance schedule:

• Regularly: Listen for strange noises like grinding, squealing, or a new, louder hum. A change in sound is often the first clue something is wrong.
• Monthly: Do a quick visual check of the electrical connections for corrosion or loose wires. Ensure it's still bolted down tight.
• Quarterly: Clean the motor's exterior, especially the cooling fins. A thick coat of dust and grime acts like a jacket, trapping heat and shortening its life.

Finally, proper grounding is a non-negotiable safety step. A dedicated ground wire gives electricity a safe path during a fault, preventing the motor's frame from becoming live. Using the right hardware is crucial; our guide on choosing the right 1-inch pipe clamp can be helpful for these jobs. Always ensure your motor is correctly grounded according to local electrical codes.

How to Select the Right 10 HP Motor

You've done the research and are ready to buy a new 10 hp electric motor single phase. Choosing the wrong motor is an expensive mistake that leads to poor performance and downtime.

The biggest trap is focusing only on horsepower. Think of it like buying a vehicle: you wouldn't buy a sports car to haul lumber, even if it has a powerful engine. A motor's frame, enclosure, and speed must match the job. Let's walk through a final checklist so you can buy with confidence.

Decoding the Critical Specifications

When comparing motors, the important details are on the nameplate. Every number and code tells a story. To get the perfect fit, you have to know what to look for.

Here’s the essential checklist for buying a motor:

• Frame Size: This is a standard NEMA dimension that dictates the motor's physical footprint and mounting bolt pattern. A 215T frame is common for a 10 hp electric motor single phase, but you must check the frame size of the motor you're replacing. If they don't match, it won't bolt into place without costly modifications.
• Enclosure Type: How tough is the motor's shell? An Open Drip-Proof (ODP) motor is fine for clean, dry indoor spaces. But for a dusty barn, a damp pump house, or anywhere outside, you need a Totally Enclosed Fan Cooled (TEFC) motor. It’s sealed against the elements.
• RPM (Revolutions Per Minute): This is the motor's speed. Most single-phase motors run at either 1725-1800 RPM (4-pole) or 3450-3600 RPM (2-pole). It is critical to match the RPM of the old motor. The wrong speed will throw off your equipment's performance.
• Service Factor (SF): Look for a number like 1.15. This tells you how much overload the motor can handle for short bursts. A higher service factor provides a valuable safety margin.

The right motor isn't just about power; it's about compatibility. Matching the Frame Size, Enclosure, and RPM is just as important as the horsepower.

Beyond the Numbers: Brand and Support

While specs are non-negotiable, brand reputation and support are your long-term insurance. A cheap, off-brand motor can cost you a fortune in downtime. For other equipment where reliability is key, see our guide on choosing the best 10-inch fan.

Stick with brands known for reliable products and accessible support. A good warranty is a sign the manufacturer has faith in what they build. And remember, once installed, your motor’s life depends on good upkeep, so follow important electrical maintenance tips. Your goal is to buy a workhorse that will give you dependable power for years, and that starts with a brand you can trust.

Frequently Asked Questions

When dealing with a motor as powerful as a 10 hp electric motor single phase, questions always come up. Let's tackle the most common ones.

What Is the Typical Starting Current for a 10 HP Single Phase Motor?

The starting current, or Locked Rotor Amps (LRA), is incredibly high—four to six times the motor's normal running current.

For a motor that runs at 40-45 amps, the initial jolt can spike to a massive 160-270 amps for a split second. This is why you need a special motor-rated (HACR) circuit breaker designed to handle that brief surge without tripping.

Can I Run a 10 HP Single Phase Motor on a Standard Household Circuit?

Absolutely not. A 10 HP motor is a power-hungry beast and requires its own dedicated 240V circuit, usually rated for 60 amps or more. Your standard 120V outlets won't work.

Plugging this motor into a regular wall socket is a serious fire hazard and will trip the breaker instantly. It must be powered by its own heavy-duty circuit.

The electrical demands of a 10 hp electric motor single phase far exceed the capacity of any standard home outlet. A dedicated, heavy-duty circuit is the first and most important step.

Why Choose a Single Phase Motor if Three Phase Is More Efficient?

The answer is simple: power availability. Most homes, rural properties, and small workshops don't have three-phase electrical service.

Getting the utility company to install a three-phase line can cost thousands of dollars. The 10 HP single-phase motor is often the most powerful motor you can run on a standard single-phase service, making it the only practical choice for heavy equipment in these locations.

Do I Need a Magnetic Starter for This Motor?

Yes, and you'll be glad you have one. For a motor this size, a magnetic starter is a necessity. Think of it as a heavy-duty, remote-controlled switch that protects you and the motor.

A magnetic starter provides critical overload protection, sensing if the motor is overheating and shutting it down before it burns out. It also lets you use low-voltage wiring for start/stop buttons, a much safer way to control such a powerful machine.
